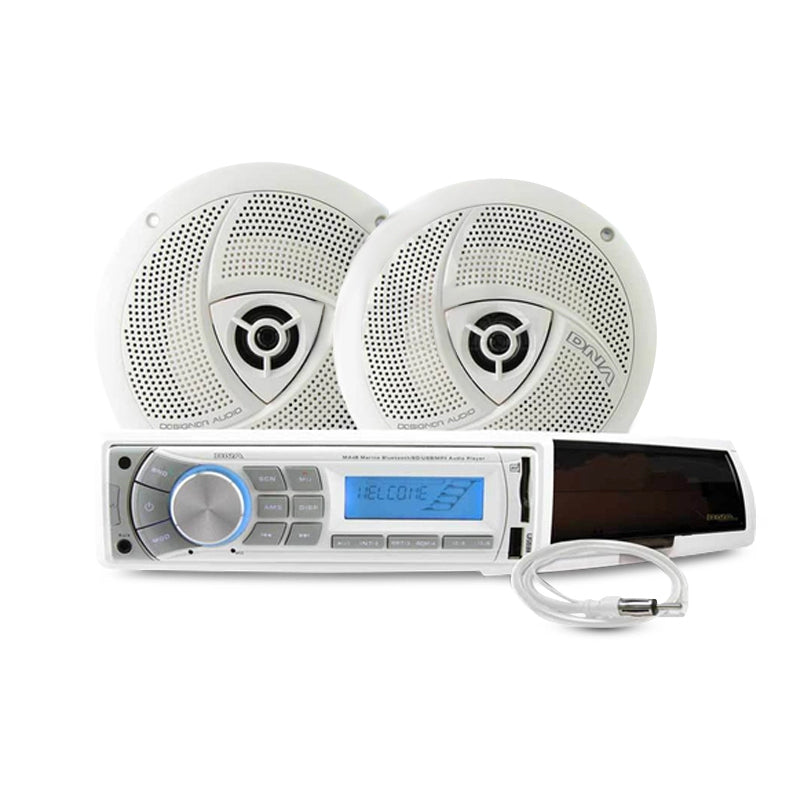

DNA Audio Ultimate Marine Stereo Pack

Designed with high quality sound and outdoor protection features this is the ultimate marine package to get your music playing on your boat.

The pack contains:
MA4B - AM/FM Media player with bluetooth, USB, SD & Aux audio input.
MAF001 - Marine protection face.
MS650W - 6.5 Inch slimline marine speakers in white - 1 Pair.
AXA110 - AM/FM stealth antenna for the radio tuner.

Individual Product Information:

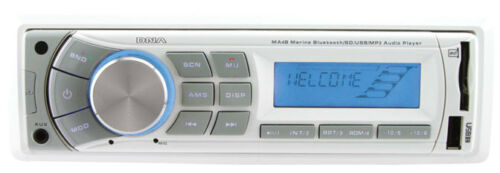

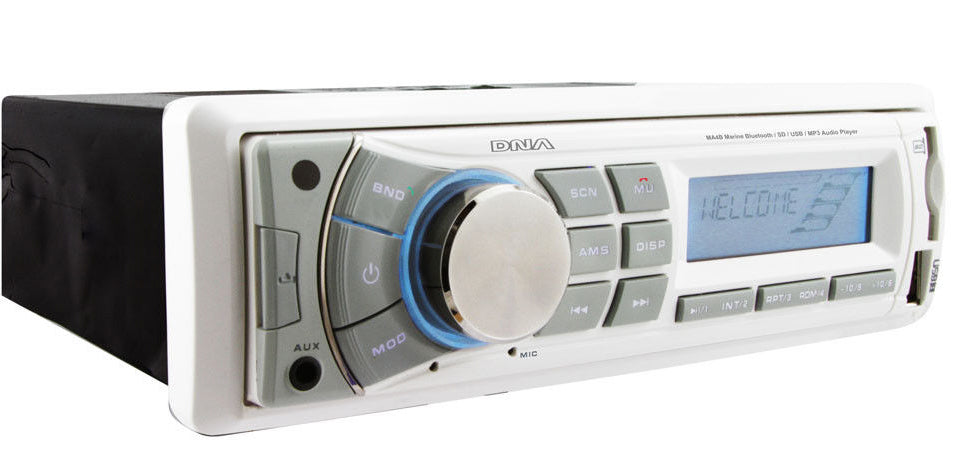

MA4B - Marine Bluetooth USB/SD MP3 Player with AM/FM tuner and AUX audio input - White
This marine 4 channel AM/FM Bluetooth MP3 player is ideal for installation applications in the dashboard making it ideal for use on boats or other outdoor vehicles. The unit features Bluetooth streaming and Bluetooth hands-free and AUX, SD and USB inputs on the front for playback from modern audio devices like USB flash sticks, SD cards, MP3 players, IPhones, Smartphones, iPods etc.

Bluetooth A2DP features:
Allows music to be streamed from handheld devices via a Bluetooth A2DP audio connection.
Bluetooth Pairing: To pair your phone to the MA4B set your phone to search for a new device and select Car Audio when found. If the phone is requesting for a pin number, enter 8888 to pair). Once paired BT ON will be display on the screen momentarily.

Hands free calling features:
Allows phone calls via the boat’s audio system using most Bluetooth enabled mobile phones, including the iPhone. Keep your phone safely tucked away and still make phone calls using the boat’s audio system.

USB Audio features:
Connected from front of head unit. Play music from USB flash drive units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.

SD Audio features:
Connected from front of head unit. Play music from SD memory card units. Plays MP3, WMA music formats. Will handle up to 8GB but is dependent on the memory’s software. MP3 and WMA playback with ID3 tags. Fitted with rubber protection cover.

AUX Audio input features:
Front 3.5mm stereo socket input on head unit. Ideal for many devices to be connected: including: portable CD players, walkmans, MP3 players, in fact anything that has a headphone or line output

Radio tuner features:
AM / FM PLL (phase locked looped) ETR (electronic tune radio) tuner, 30 station presets (18FM and 12AM) AS/PS feature / Local/DX / band button / tune seek up or down

Display: Positive LCD display (black on blue) with blue light up buttons.
Face colour: White face and trim plate with grey buttons and grey volume knob with chrome ring

Remote control: 21 Button remote control

Marine features: Conformal epoxy coating on all PCB circuit boards to prevent damage from high humidity and salt. Rust-resistant EDP (Electro deposit paint) coating on the chassis and PET cover on top and left and right sides

General features: 100W - 4 x 25 watt max power / detachable face / din surround or rear mount / electronic audio control (bass, treble, fader, balance, volume) / EQ control (digital sound processing - classical, pop, rock etc) / mono/stereo / clock / AS/PS / Mode
Mounting dimensions:50mm(H) x 178mm(W) x 90mm(D)

Input / output wires: 2 x RCA audio line output sockets (1.2 Volt) / antenna socket / male harness plug to male ISO connector with 2 female ISO plugs to bare ends (30cm).
Packaging: DNA Gift box

NOTE: If your boat / vehicle does not have a seperate accessory wire circuit, make sure the red (ignition/accessory 12v) wire and the yellow (memory backup 12v) wire on this unit are both connected to the same 12 volt power source in the boat / vehicle.

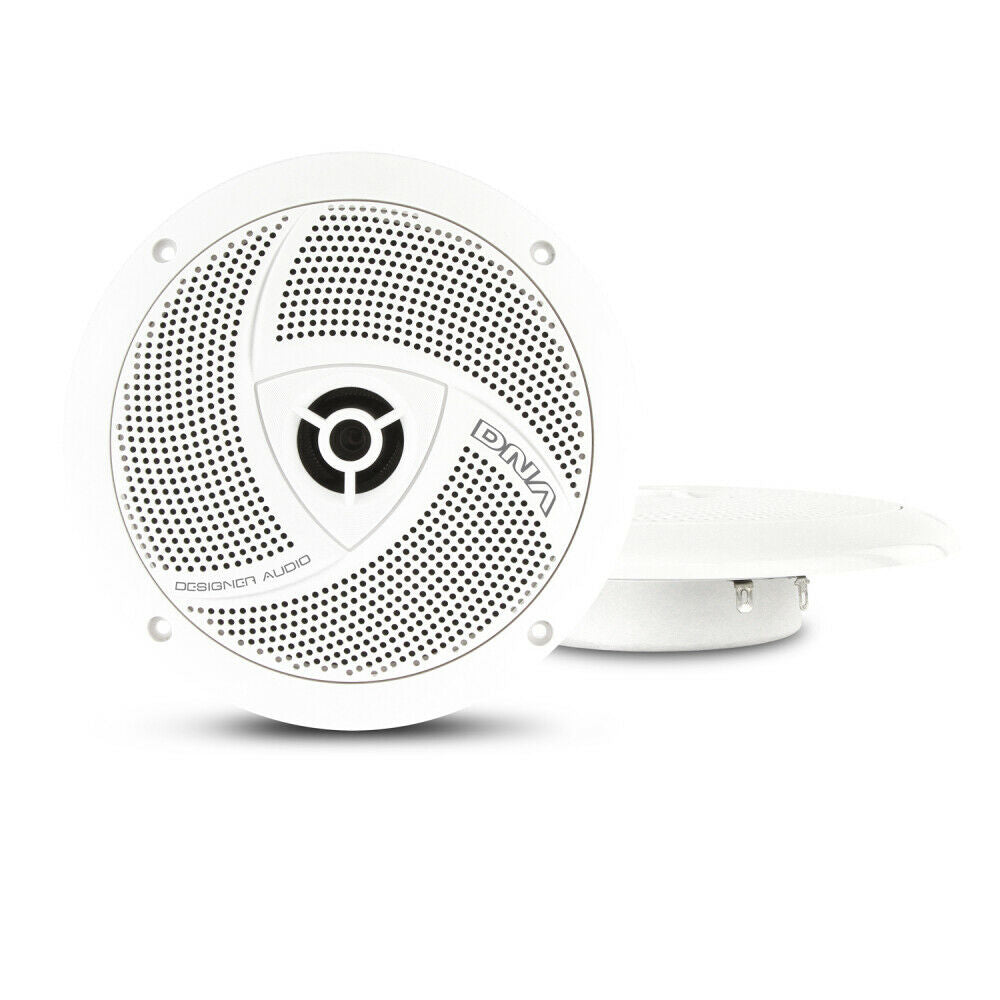

MS650W - 6.5 Inch Slimline Marine Speakers In White - 1 Pair
These ultra slim 6.5 inch marine speakers are designed for shallow mount installations where mounting depth is limited.
Designed with a water resistant and UV stabilised ABS grille, basket and polypropylene cone for harsh outdoor applications.
Ideal for boats: marine: outdoor vehicles, spa and home applications.

Speaker Size: 6.5 Inch
Power: 100 Watts max
Impedance: 4 ohms
Mounting depth: 25mm
Magnet: 6oz
Frequency response: 60-20kHz
Sensitivity: 84dB /W/M
Voice Coil: 25mm
Cone: Black polypropylene injection cone
Speaker colour: White grille, frame and basket
Supplied with 2 x 2mm one sided sticky EVA gasket
Supplied with 2 x 3 Metre lengths of speaker wire
Supplied with stainless steel screws
Cut out of 132mm required to fit speaker
Pack size: 1 Pair
Speaker Colour: White

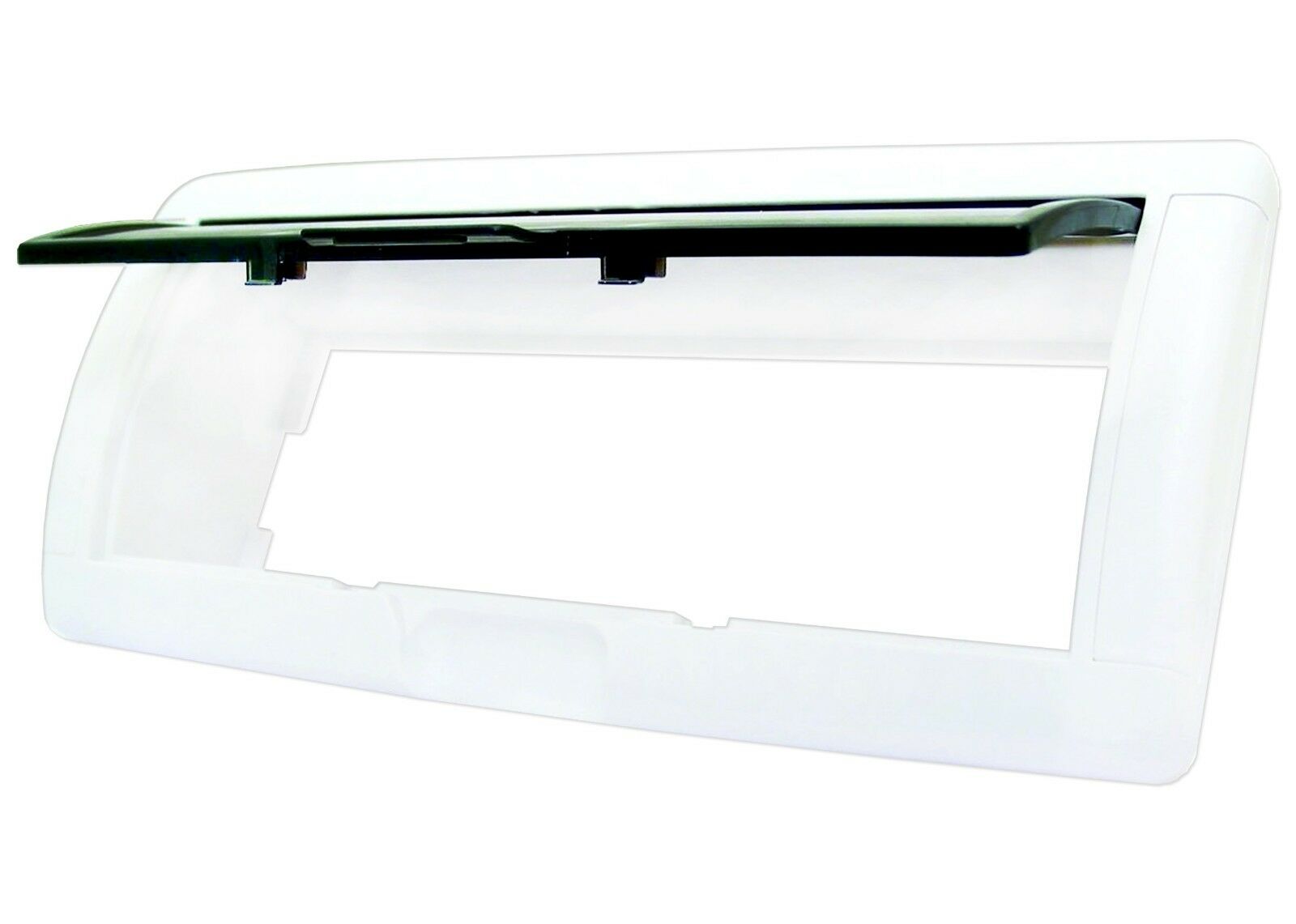

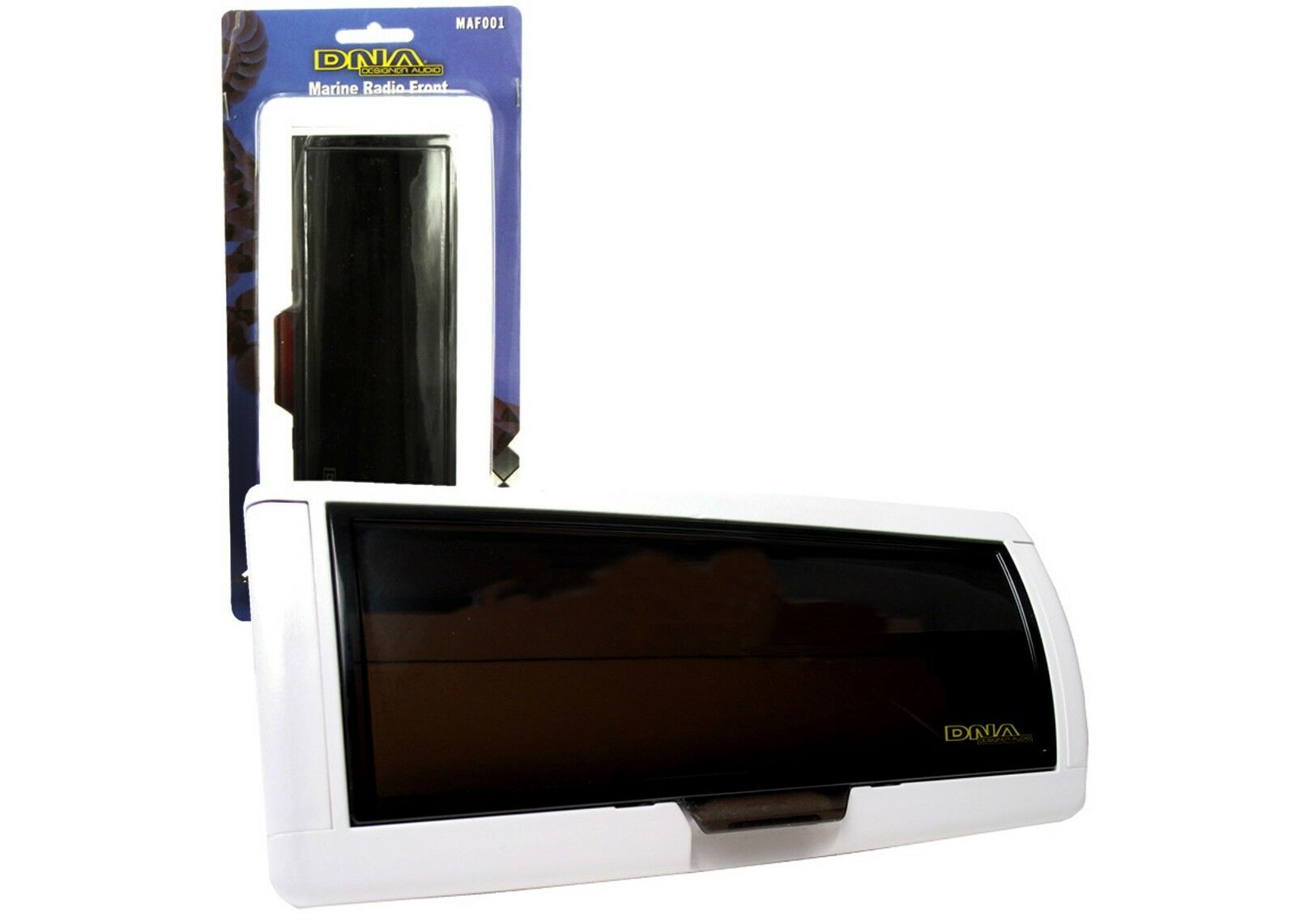

MAF001 - Sealed Waterproof Marine Protection Face
Designed with a unique slide away poly carbonate tinted front panel and UV stabilised ABS plastic housing to handle the sun, salt and spray
Designed for for DIN size CD and DVD players
Colour: White
Outer size: 102mm x 232mm
Cavity size: 78mm x 206mm

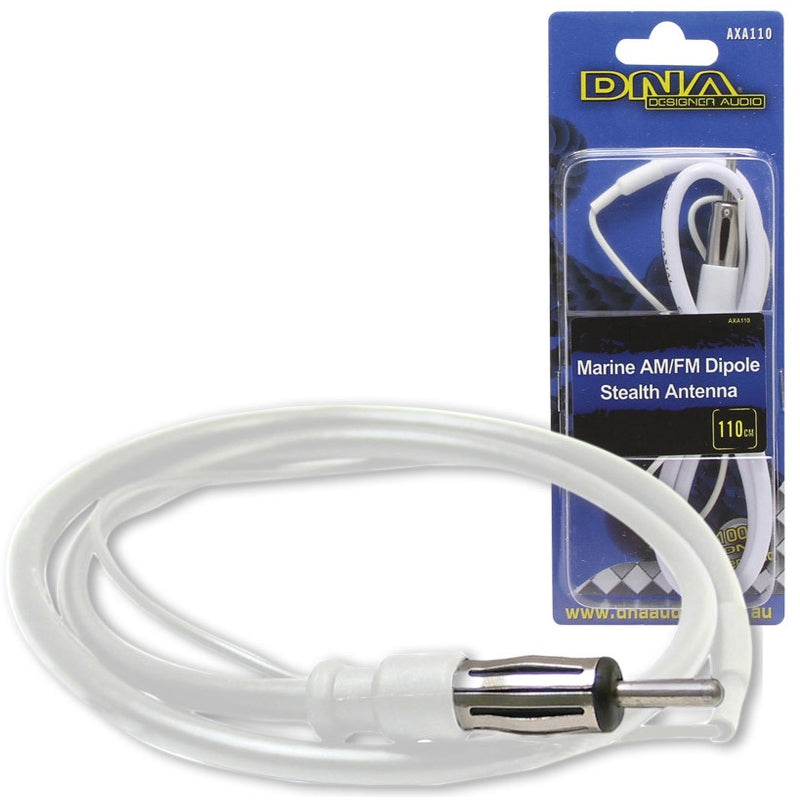

AXA110 - Weather resistant AM/FM stealth antenna
This marine antenna is designed for the marine environment and will not rust.
No drilling is required for installation, it simply plug's into your stereo and it is ready to go.
Designed for AM/FM radios with a standard Motorola type antenna socket.
Length: 110cm
Colour: White
